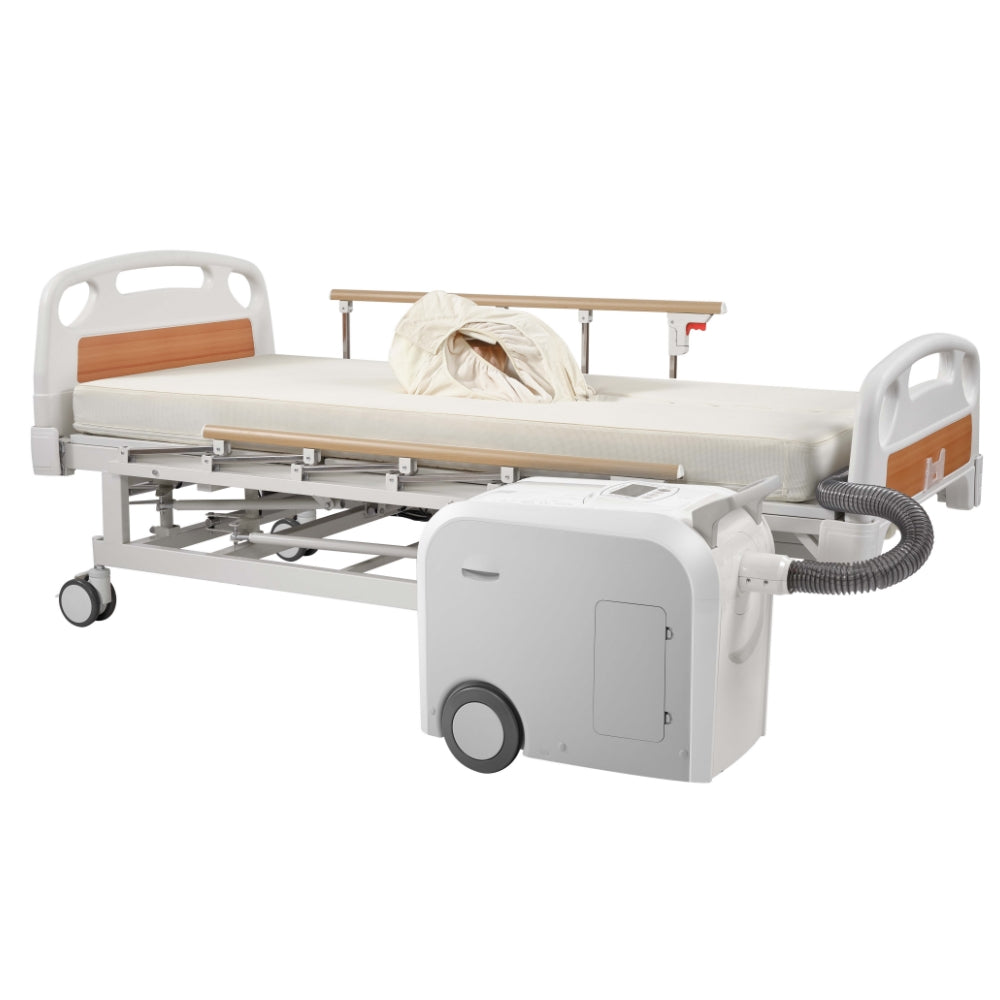

Intelligent Nursing Bed for Urination And Defecation

Device Certificate: Guangdong Shenzhen Equipment No. 20221764
Technical Parameters:
I. Product Specifications

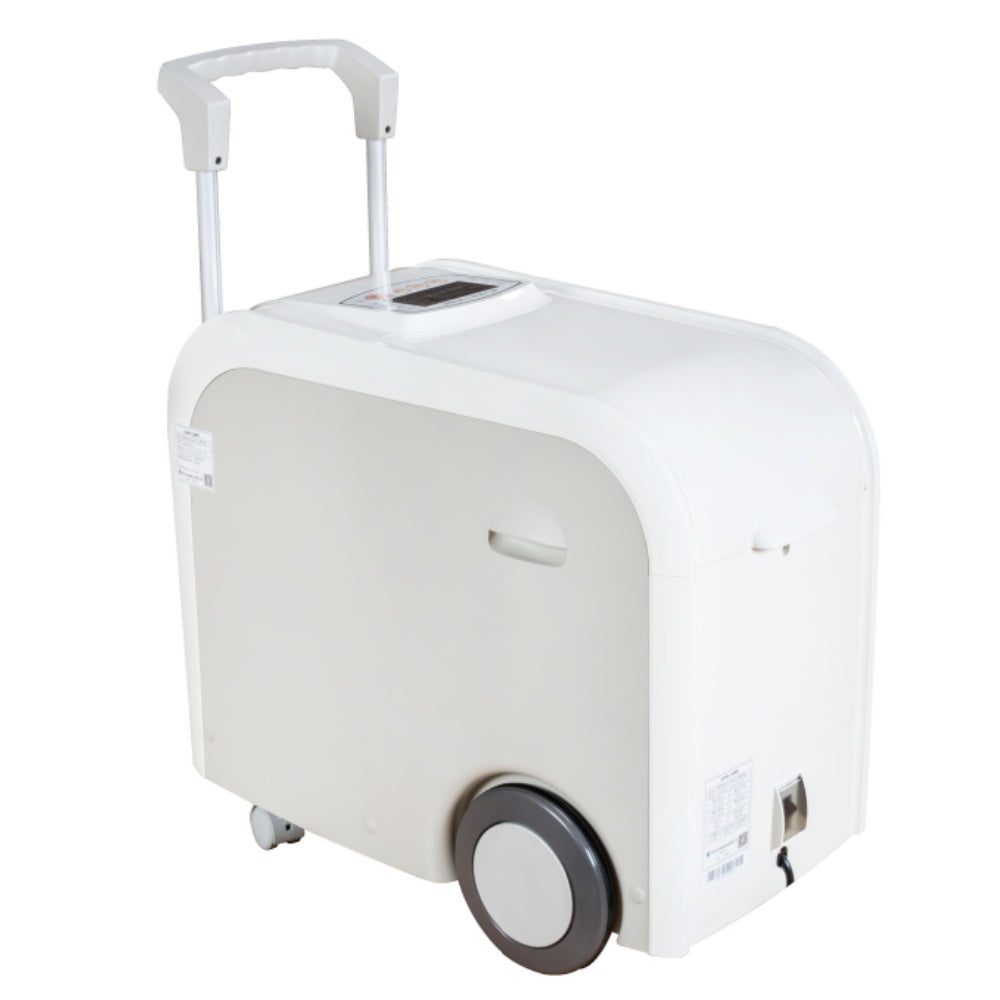

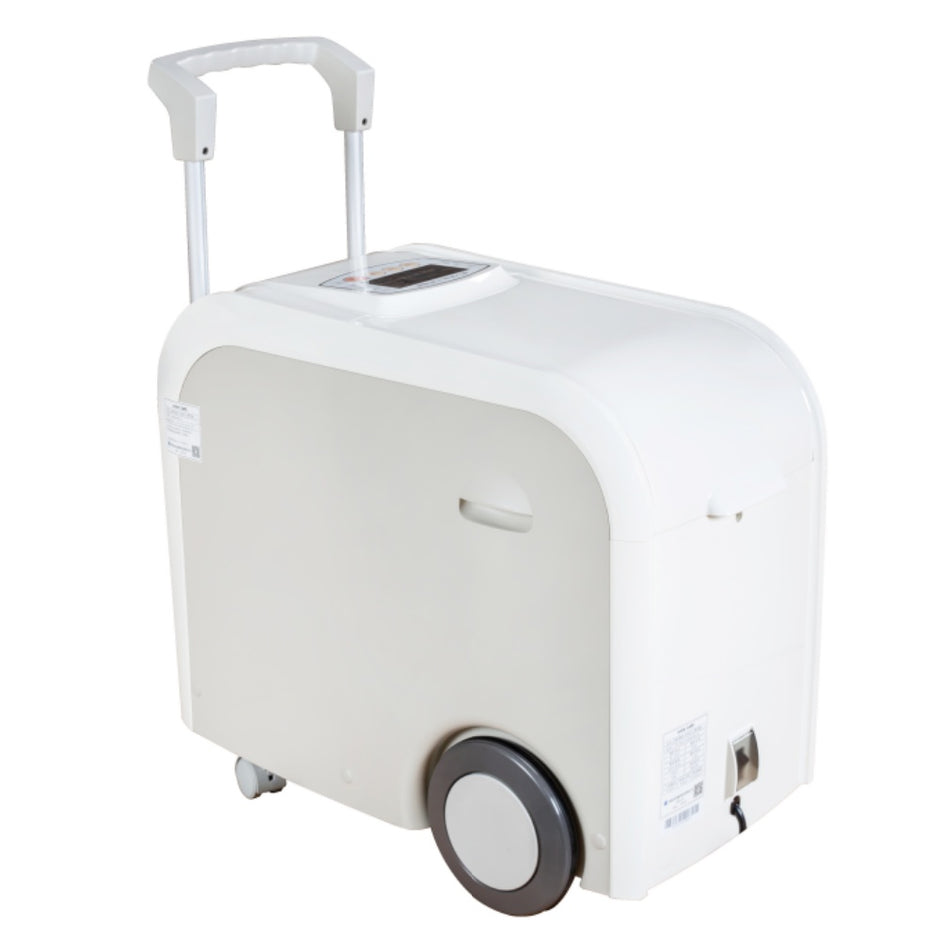

1. Main Unit Dimensions ≥ 350mm (L) * 652mm (W) * 555mm (H)
2. Rated Voltage: 100Vac (SJE-T01G), 220Vac (SCE-B01G), 50/60Hz
3. Maximum Power Consumption: 720W
4. Maximum Processing Capacity:
 1) Stool Processing: Up to 2 times
 2) Urine Processing: Up to 8 times
5. Operation:
 1) Automatic Mode: Automatic operation for stool/urine, anal cleaning, genital cleaning, and drying
 2) Manual Mode: Automatic stool processing, manual processing: anal cleaning, genital cleaning, and drying
6. Operating Conditions:
 1) Suction Pressure: -520 mmHg
 2) Stool Processing Time: Automatic, approximately 13 minutes (two crushing cycles)
 3) Urine Processing Time: Automatic, approximately 11 minutes

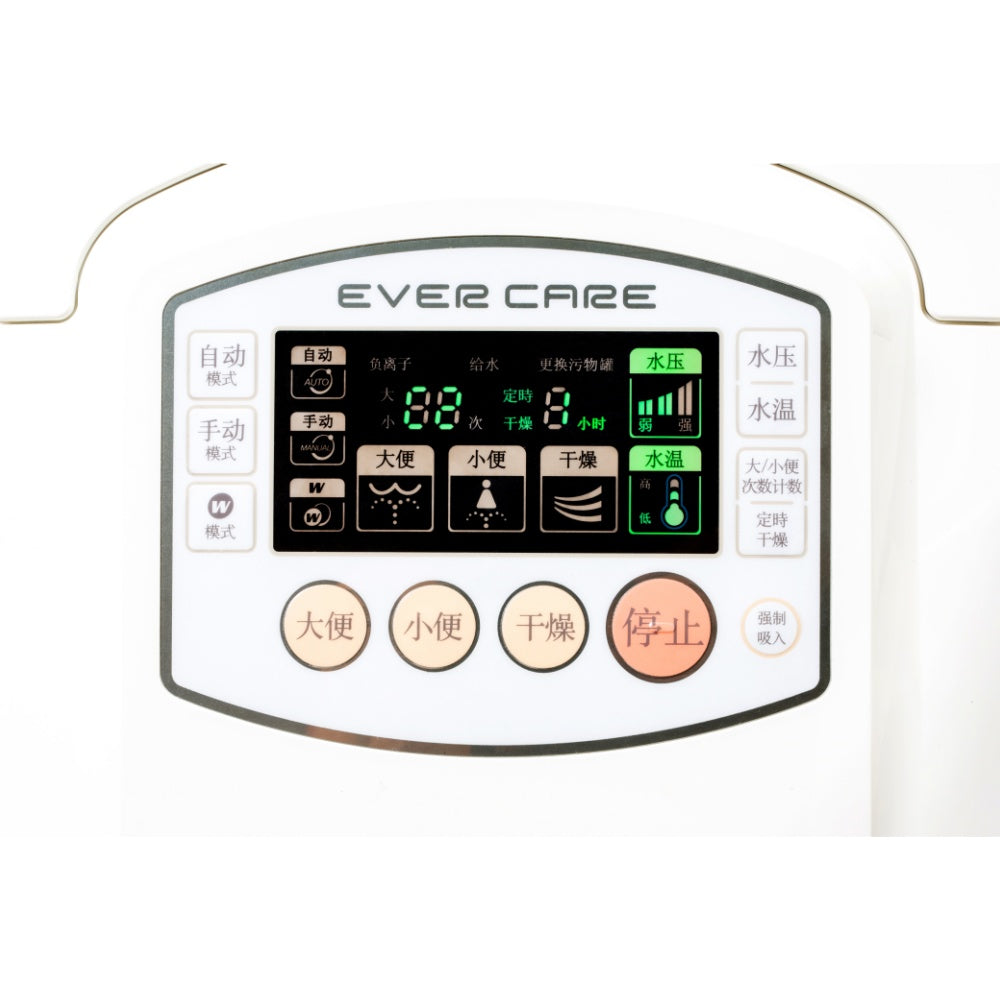

 4) Cleaning Water Temperature Setting: 4 levels (Off/Low/Medium/High)
 5) Drying Cycle: 5 levels (0, 1, 2, 3, 4 hours)
7. Remote Control: 2.0-meter wired, mini-DIN connector

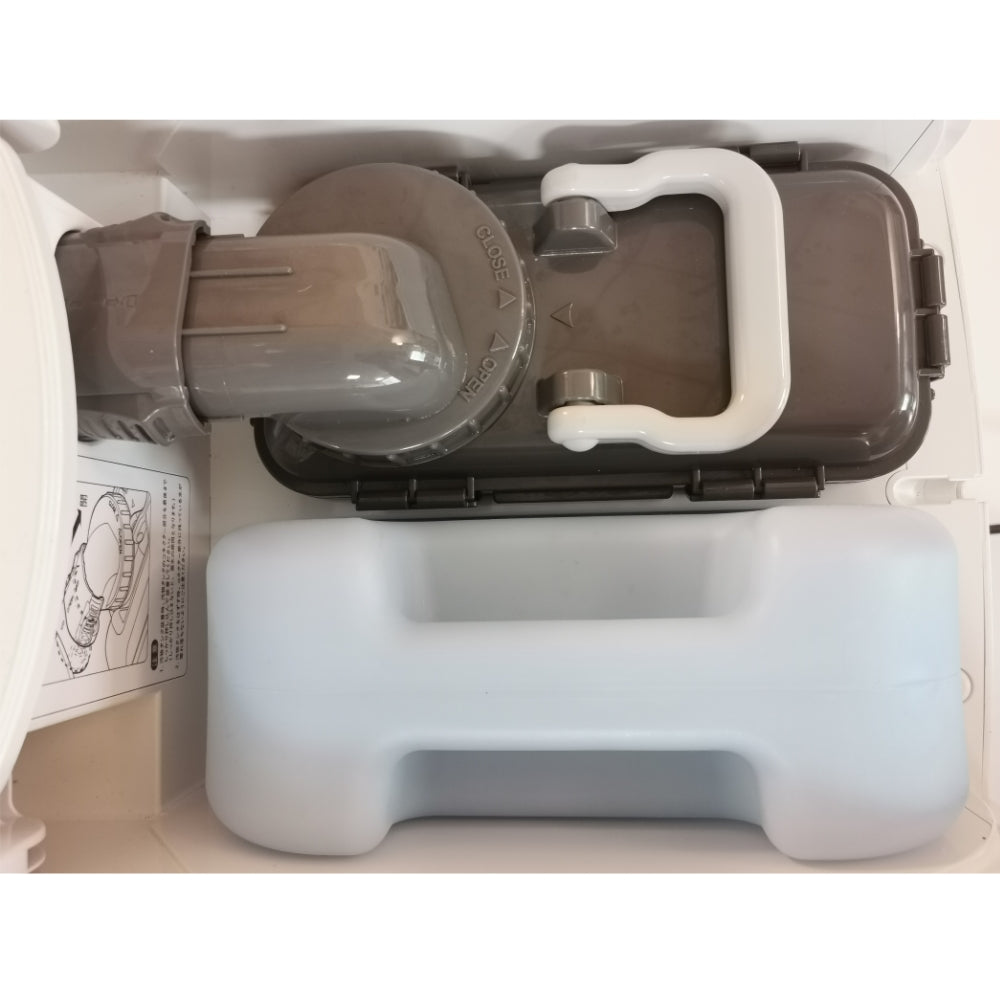

8. Cleaning Water Tank Capacity: Approximately 7 liters (4.5-liter tank, 2.5-liter internal unit)

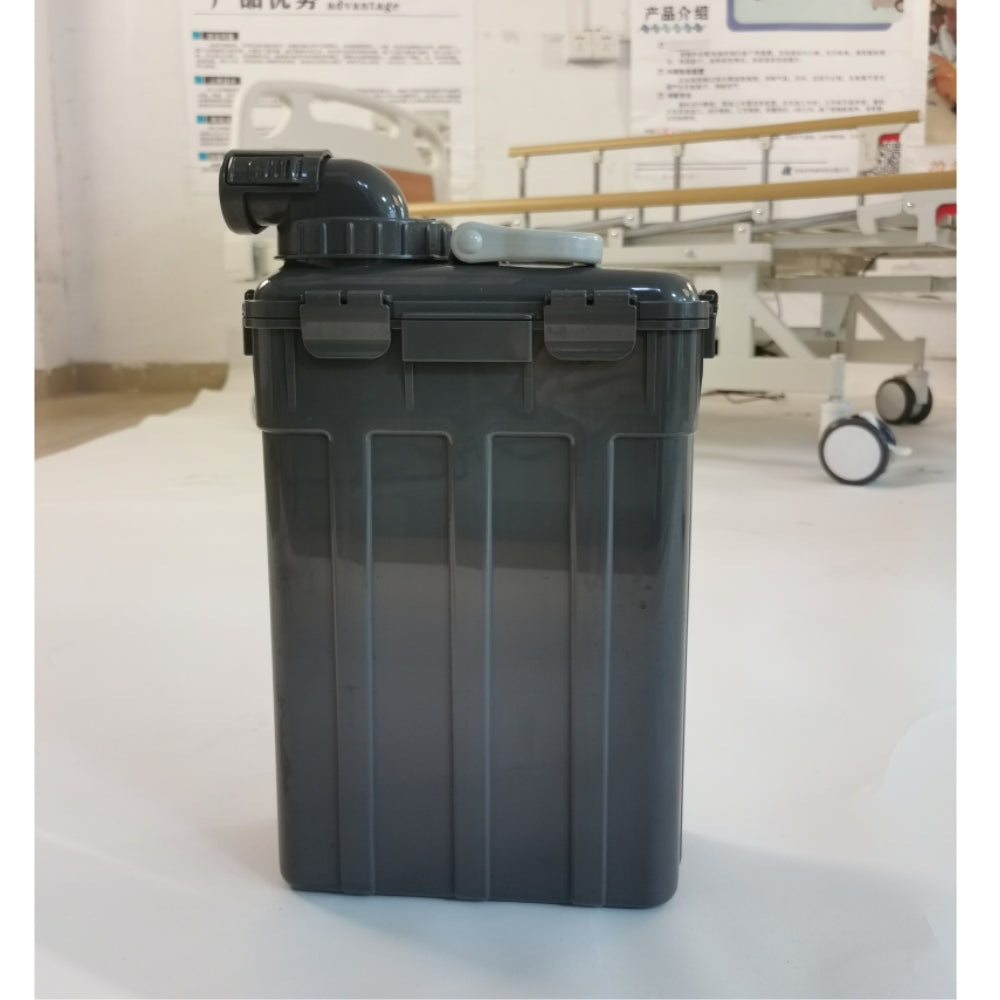

9. Waste Tank Capacity: Approximately 7.0 liters
10. Filter Replacement Period:
 1) Silencer Filters (2x): 6 months
 2) Composite Activated Carbon Filters (2x): 6 months

II. Technical Specifications
1. The device has a noise reduction function, keeping the noise level below 45 decibels when operating at full power in the second half of the night.
2. Stool Crush Function: The fully automatic urination and defecation system has a stool crushing function, which can handle coarse and hard stool without clogging the sewage pipe.
3. Automatic Distinction of Urine and Feces: When operating in automatic mode, the fully automatic intelligent urination and defecation care device can distinguish between urine and feces, saving water. The urination and feces monitoring and physical parameter collection system can promptly distinguish between urine and feces and determine the appropriate flushing mode. It also collects and records various physical parameters that reflect the user's physical condition, such as the number of bowel movements, the amount of bowel movements, and the duration of the movement, for reference in treatment.

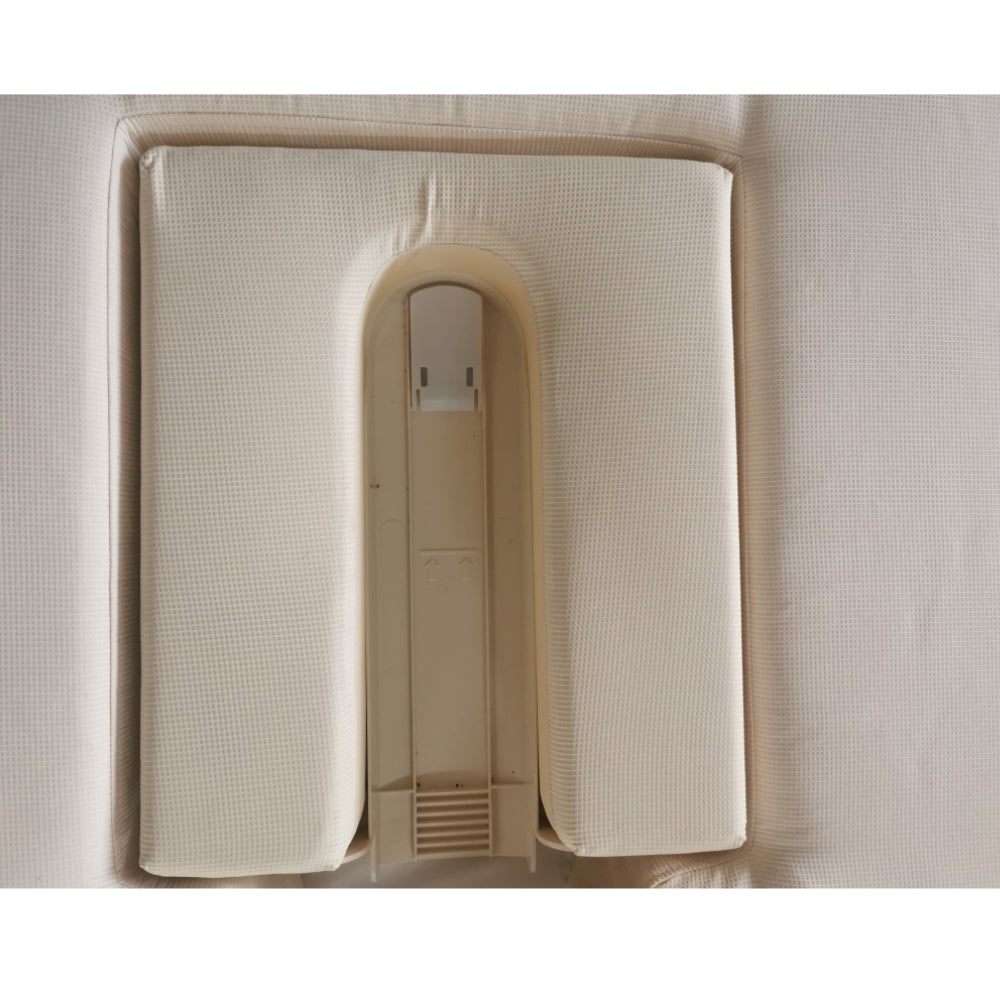

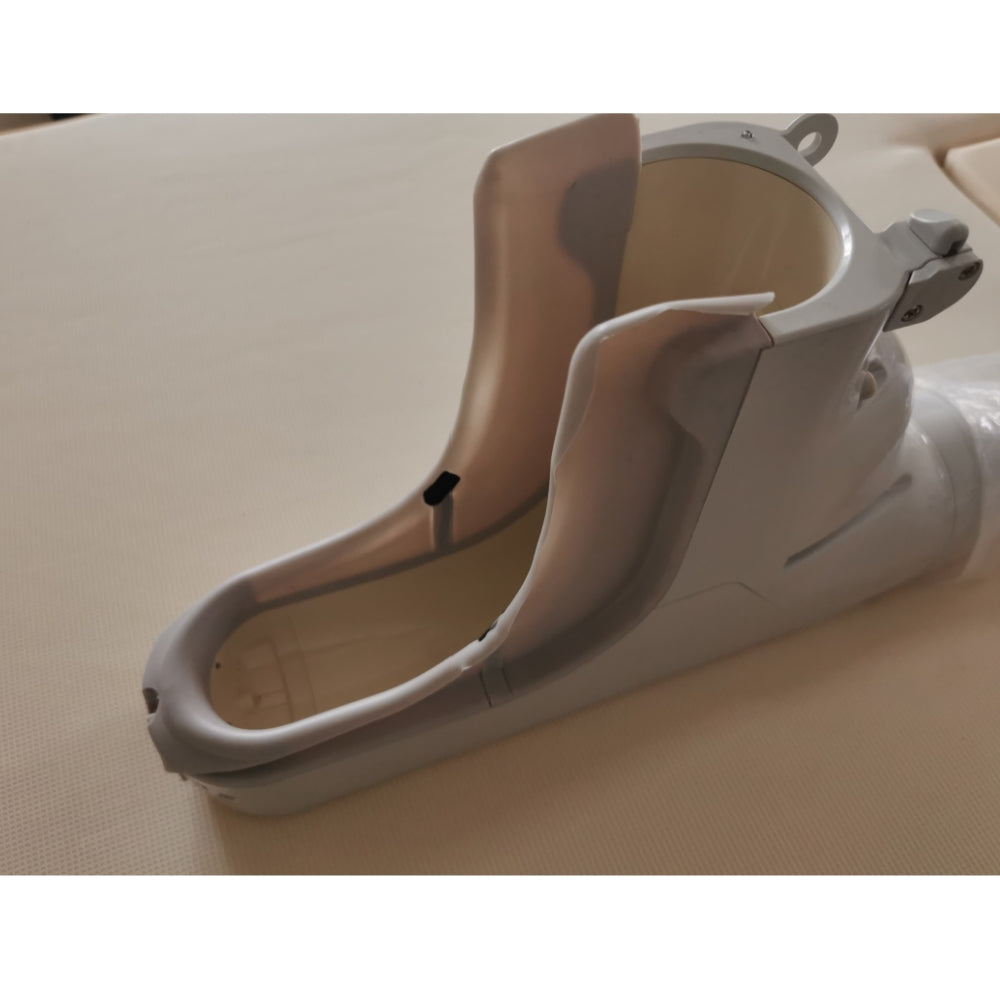

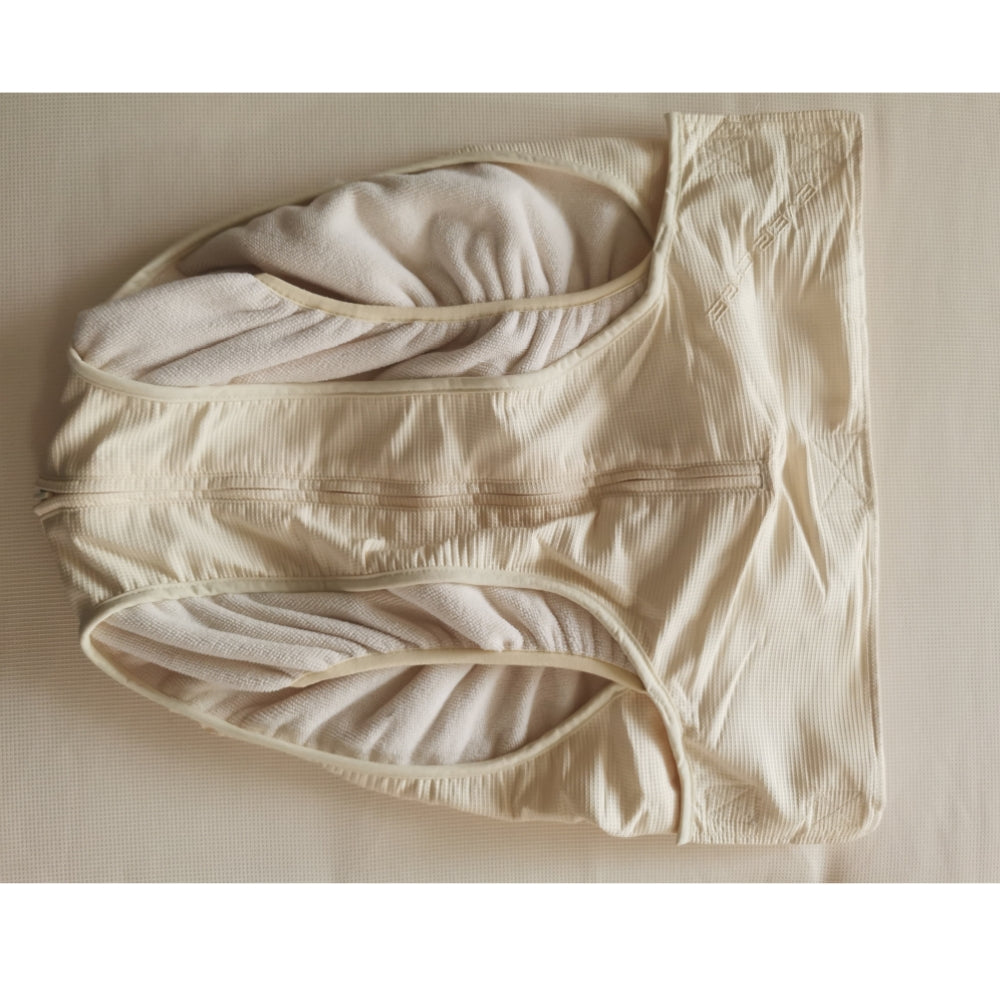

4. Toilet Bowl Material: The fully automatic intelligent urination and defecation care device is made of medical-grade plastic, a combination of soft and hard plastic, which is soft, antibacterial, and waterproof.
5. Toilet Bowl Cleaning: The fully automatic intelligent urination and defecation care device not only removes waste but also self-cleans, keeping the toilet bowl clean and hygienic. A special nozzle sprays liquid cleaning media in a conical, diverging pattern toward the user for cleaning. This surface-jet cleaning method replaces traditional columnar or linear jets, increasing the cleaning area and efficiency, providing a cleaner, more comfortable cleaning experience. The multi-directional flushing system utilizes a combination of vertical and horizontal flushing, directing cleaning media and air from the side walls, front, and bottom to the user's excretion area and collection receptacle in a time-sharing manner. This ensures that every area within the excretion area and collection receptacle is thoroughly cleaned, eliminating any residual dirt and preventing bacterial growth.
6. Convenient sideways positioning: The fully automatic intelligent urination and defecation care device can be tilted up to 45 degrees to the left or right without leaking, making it convenient for users to rest sideways.
7. The fully automatic intelligent urination and defecation care device has both automatic and manual modes, with voice prompts and a remote control.
8. It comes with a special anti-bedsore mattress and quick-drying sheets.
9. Utilizing advanced sensor technology, it can detect the user's bowel movements at any time, automatically detecting and cleaning feces and urine, and automatically spraying warm water for rinsing and hot air for drying. The entire process is odorless. Simply press the remote control, and the sensor reacts, and the device automatically processes excrement. The entire process requires no hands-on operation, and leaves no odor. Both physically and mentally, patients experience extreme comfort and satisfaction, and their families feel reassured.
10. Odorless and Deodorizing: The closed internal circulation system prevents the leakage of excrement odors. After disinfection, deodorization, and odor removal, waste is separated by a centrifugal water-gas separator, which then recirculates the gas to the gas supply unit for reuse. This eliminates the need for external air intake and exhaust, effectively preventing the leakage of excrement odors and maintaining a healthy air environment. 11. Water temperature settings include high, medium, and low.
12. Water pressure settings include high, medium, and low.
13. Timed air drying function.
14. Indoor air purification function.
15. This fully automatic toilet and toilet care device has passed specialized leakage testing and poses no risk to the user.

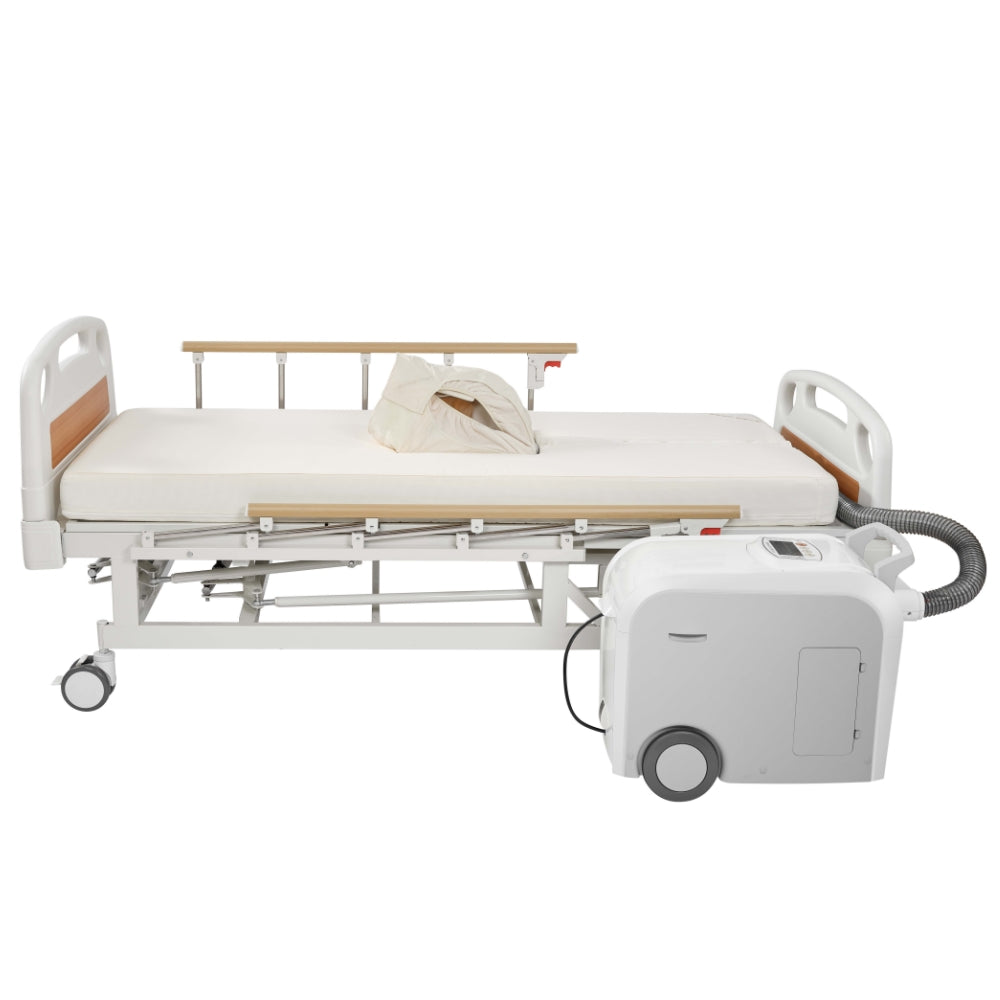

III. Functional Bed Technical Parameters
1. Back-up/back-flat, left/right side, leg-lift/leg-down
2. Back-up 0-75°, leg-lift/leg-down 0-30°, left/right turning 45°
3. Exercise rehabilitation functions: sit-ups, leg-bend exercises, free-step exercises, left/right turning, and combination exercises
4. Standard features: Mattress, IV pole, shampoo basin, bedpan, dining table, double-sided wheels
5. Steel welded bed surface, electrostatic spray coating
6. ABS head and footrests
7. Folding wooden guardrails
8. Dimensions: Length * Width = 200cm * 90cm
9. Supports bed-motor linkage
10. Supports continuous back exercises, continuous leg exercises, continuous left/right turning, and free-step exercises, each lasting 10 minutes.
